White Grinding Hi Temp Crumb Bumper Plate
New Grinding Hi temp Bumper plates combine recycled Nike and Adidas shoes into a high-temperature resistant bumper plate for weightlifting. Firslty need to break down the new production waste shoes material components.
So, the main goal is to create a bumper plate using recycled shoe materials. Bumper plates need to be durable, shock-absorbent, and able to withstand high temps. But using recycled shoes introduces variables since shoes have different materials. Nike and Adidas shoes typically have rubber outsoles, foam midsoles (like EVA or PU), textiles, and adhesives. These materials color chosed have varying properties, so need to consider how they'll interact when recycled.
First step: Material analysis. Grinding would break them down into smaller particles mesh 10 mesh around. But shoes colors aren't uniform. The evenly color rubber from outsoles is good for durability, but foam might not handle high temps. Adhesives and textiles could be contaminants. Need to figure out how to separate or process these components.
Next, the bumper plate needs to handle high temps. Traditional bumper plates use vulcanized rubber. High-temp resistance usually requires materials like EPDM or silicones. But if we're using recycled shoes, maybe we can blend the shoe rubber with high-temp resistant polymers. However, the recycled rubber from shoes might not be as heat resistant. So, maybe a composite approach Mixing shoe material with virgin high-temp elastomers.Meanwhile higher quality PU glue mixing with higher temperature vulcanization .

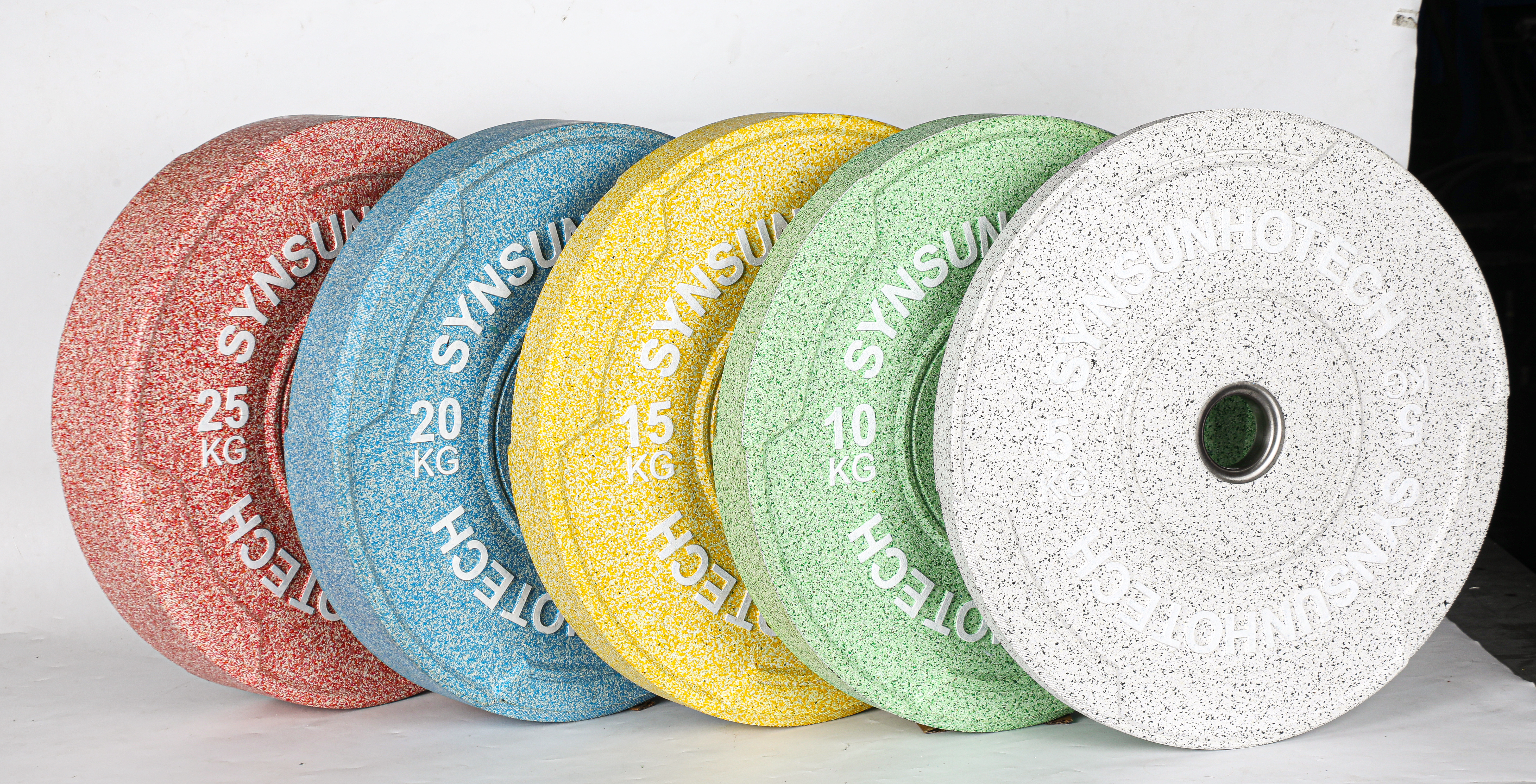

Possible steps: Shred the shoes, separate the rubber components from foam and textiles. Then grind the rubber into crumb. Mix this crumb with a high-temp polymer like EPDM,virgin rubber. Add reinforcing fillers like silica or carbon black. use a compatibilizer to improve adhesion between the recycled rubber and the new polymer. Then process this composite into bumper plates via compression molding.guarantee all color its evenly .5KG gray ,10KG green ,15KG yellow ,20KG blue ,25KG red ,more easy make a different for athlets working .
recycling processes might degrade the rubber's properties. Need to check if the recycled material can still meet the required thermal and mechanical specs. Testing is crucial here. Also, the presence of other materials (foam, fabric) could weaken the composite. Maybe a purification step is needed to remove non-rubber components.
Another angle: sustainability. The user is using recycled shoes, which is eco-friendly. But if the process requires too much energy or new materials, it might offset the benefits. Need to balance recycled content with performance. Maybe a percentage of recycled material blended with virgin high-temp rubber.
Also, compliance with weightlifting standards. Bumper plates have specific requirements for diameter, weight, and durability. The composite must meet these. If the recycled material affects the density, adjustments might be needed, like adding metal inserts for correct weight.
Potential challenges: Inconsistent material quality from recycled shoes. Each pair might have different rubber types or contaminants. This could lead to variability in the final product. Quality control would be essential. Maybe sourcing specific types of shoes with higher rubber content could help.
Cost considerations. Recycling and processing shoes into usable material might be more expensive than virgin materials. But marketing eco-friendly products could justify a higher price point. Need to assess the cost-benefit.
Intellectual property: Using branded shoes like Nike and Adidas. Are there legal issues with recycling their products into new items? Might need partnerships with the companies or ensure the process doesn't infringe on any patents.
Aesthetics: Bumper plates are often color-coded by weight. The recycled material might have a mixed color, so adding colorants without affecting properties would be important.
Testing phases: Start with small batches, test thermal stability (TGA, HDT), mechanical strength (tensile, compression), impact resistance. Iterate the material formulation based on results.
In summary, the process involves material recovery from shoes, formulation of a composite with high-temp resistance, ensuring performance meets standards, and addressing logistical and economic factors. Collaboration with material scientists and recycling facilities would be key. Also, exploring partnerships with Nike and Adidas for a sustainable initiative could enhance feasibility and branding.
To create high-temperature bumper plates for weightlifting using recycled Nike and Adidas shoes, follow this structured approach:
Shoe Recycling Process:
Collect end-of-life Nike/Adidas shoes and shred them into small pieces.
Use mechanical separation (e.g., air classifiers, density separators) to isolate rubber outsoles, foam midsoles (EVA/PU), and remove non-rubber components (textiles, adhesives, metals).
Grind the rubber into crumb (10-20 mesh particles) for use as the primary recycled feedstock.
Base Material:
Recycled Shoe Rubber (60–70%): Provides elasticity and shock absorption but may lack heat resistance.
High-Temperature Polymer (30–40%): Blend with virgin EPDM or silicone to enhance thermal stability (up to 150–200°C).
Reinforcements:
Add silica or carbon black (10–15%) to improve strength and heat deflection.
Incorporate ceramic microspheres (5%) for thermal insulation.
Compatibilizers:
Use coupling agents (e.g., silanes) to improve bonding between recycled rubber and virgin polymers.
Additives:
Antioxidants and thermal stabilizers (e.g., hindered phenols) to prevent degradation.
Flame retardants (e.g., aluminum hydroxide) if required.
Mixing:
Combine recycled rubber, EPDM, fillers, and additives in a high-shear mixer glue to ensure homogeneity.
Molding:
Use compression molding at 160–180°C and high pressure to form bumper plates.
Optimize vulcanization time to cross-link polymers for durability.
Post-Processing:
Trim excess material and add steel inserts (for weight calibration) if needed.
Apply surface textures or coatings to improve grip and reduce bounce.
Thermal Resistance:
Heat deflection temperature (HDT) and thermogravimetric analysis (TGA) to ensure stability under high temps.
Mechanical Performance:
Tensile strength (>10 MPa), compression set (<20%), and drop tests (from 2m+ heights) per IWF standards.
Environmental Testing:
Expose to UV, humidity, and extreme temps to simulate real-world conditions.
Eco-Design:
Target 50–70% recycled content to reduce waste and carbon footprint.
Partner with Nike/Adidas for shoe recycling programs to secure raw materials.
Cost Reduction:
Use energy-efficient grinding/molding processes.
Explore government grants or certifications (e.g., Cradle-to-Cradle) for eco-friendly products.
Standards:
Ensure compliance with IWF specifications for diameter, weight tolerance, and durability.
Aesthetics:
Add non-fading pigments (e.g., inorganic oxides) for color-coding weights.
Branding:
Market as a sustainable product (e.g., “EcoLift Bumper Plates: Made from 70% Recycled Shoes”).
High-Temperature Resistance: Withstands heat from friction during repeated drops.
Shock Absorption: Recycled rubber ensures low bounce and noise reduction.
Eco-Friendly: Diverts shoes from landfills and reduces virgin material use.
Durability: Reinforced composite resists cracking and deformation.
Contaminants: Strict quality control to remove non-rubber debris during recycling.
Material Consistency: Batch testing to account for variability in shoe feedstock.
Cost: Balance recycled content with performance to keep pricing competitive.
By leveraging recycled shoe materials and advanced composites, this approach merges sustainability with high-performance weightlifting gear. Collaborations with sportswear brands (Nike/Adidas) could amplify both environmental impact and market appeal.
